Resilient Channel Wall Reports – Wood Studs

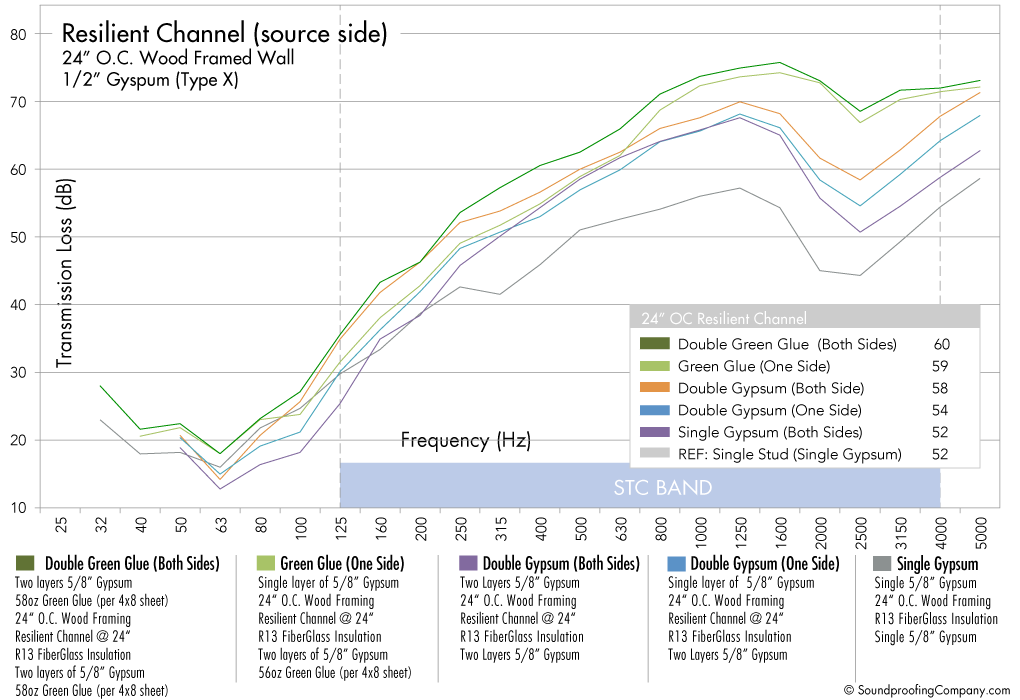

Resilient Channel 24OC wood Stud with 5/8 Gypsum
  • sw-resilient-channel-single-single-solid-assembly-stc-preview
  • sw-resilient-channel-single-double-solid-assembly-stc-preview
  • sw-resilient-channel-double-double-solid-assembly-stc-preview

STC Source Side Wood Studs Insulation Receive Side Report
52 One layer of 5/8″ Gypsum 24″ OC R13 Resilient Channel
One 5/8″ layer of drywall
 –
53 Two layers of 5/8″ Gypsum 24″ OC R13 Resilient Channel
One 5/8″ layer of drywall
OL 05-1010
54 Two layers of 5/8″ Gypsum 24″ OC R13 Resilient Channel
Two Layers of 5/8″ Gypsum
OL 05-1011

STC Source Side Wood Studs Insulation Receive Side Report
49 One layer of 5/8″ Gypsum 24″ OC R13 Resilient Channel
One 5/8″ layer of drywall
  TL-93-082
54 Two layers of 5/8″ Gypsum 24″ OC R13 Resilient Channel
One 5/8″ layer of drywall
TL-93-085
59 Two layers of 5/8″ Gypsum 24″ OC R13 Resilient Channel
Two Layers of 5/8″ Gypsum
TL-93-086
